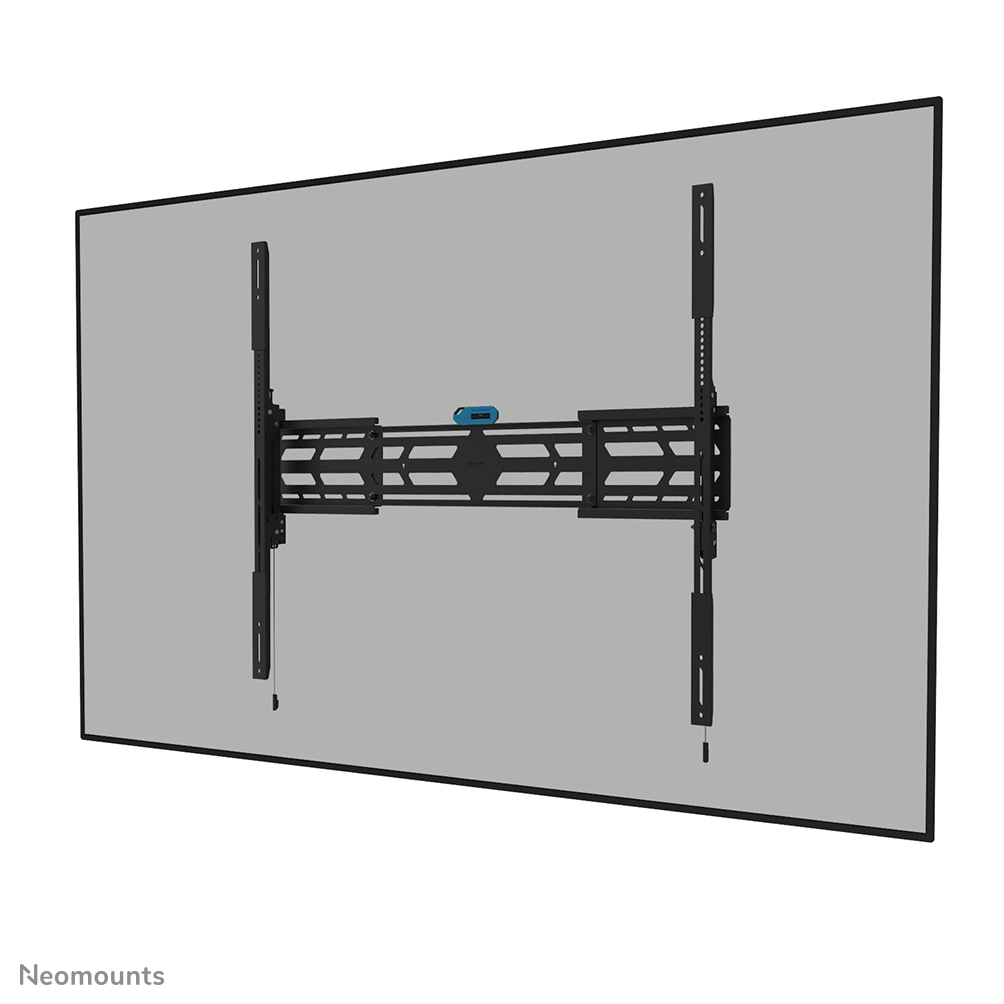

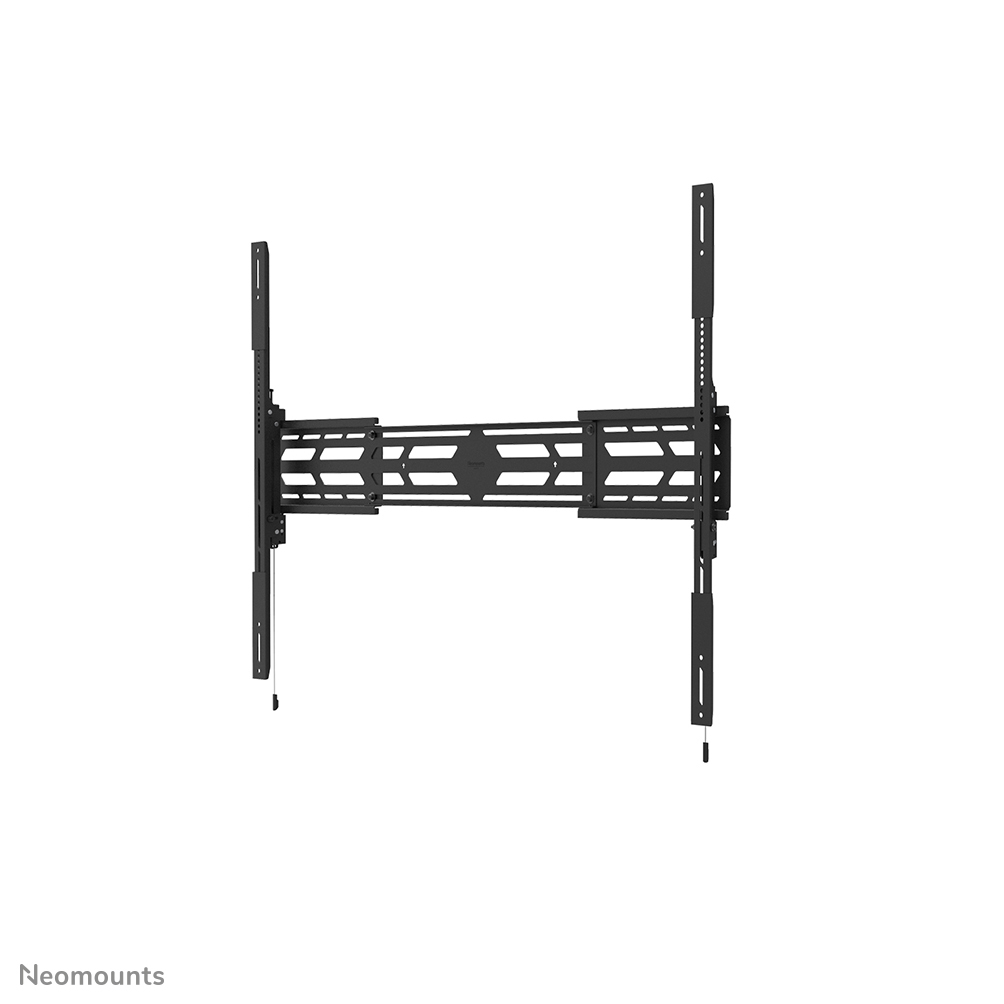

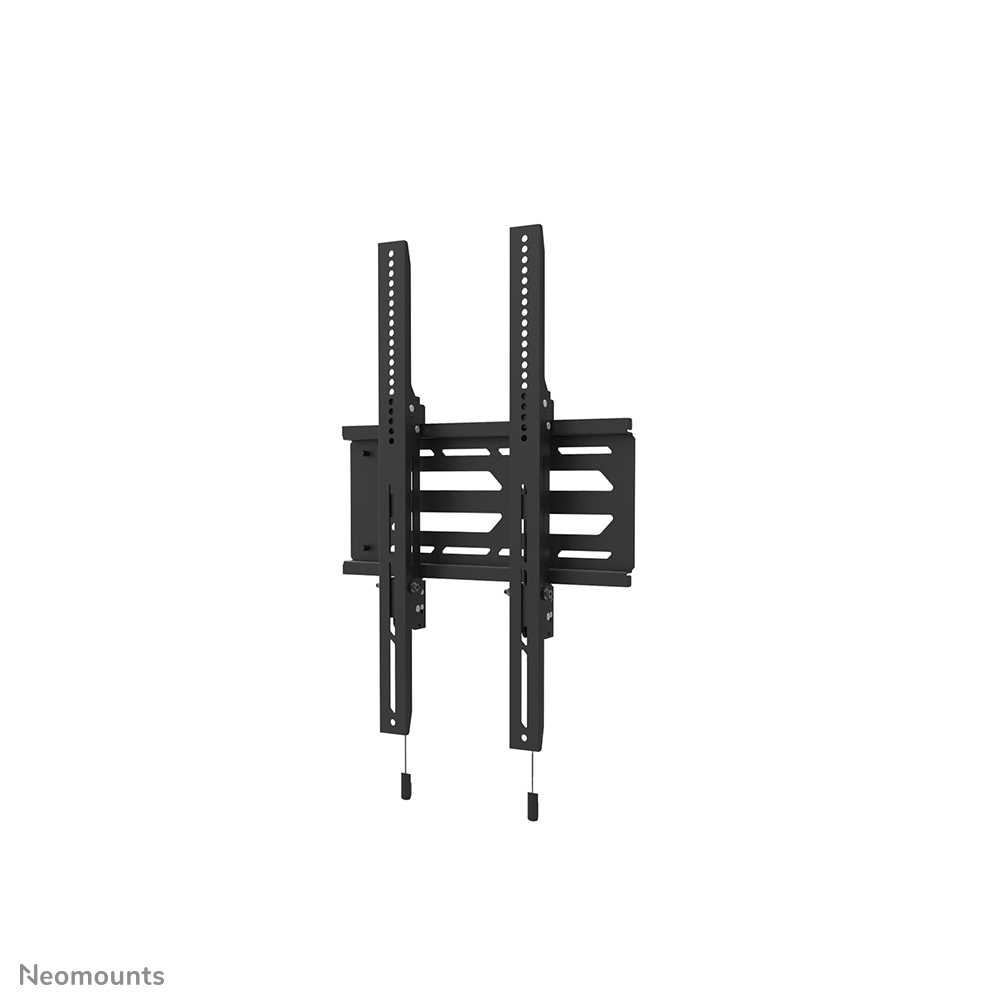

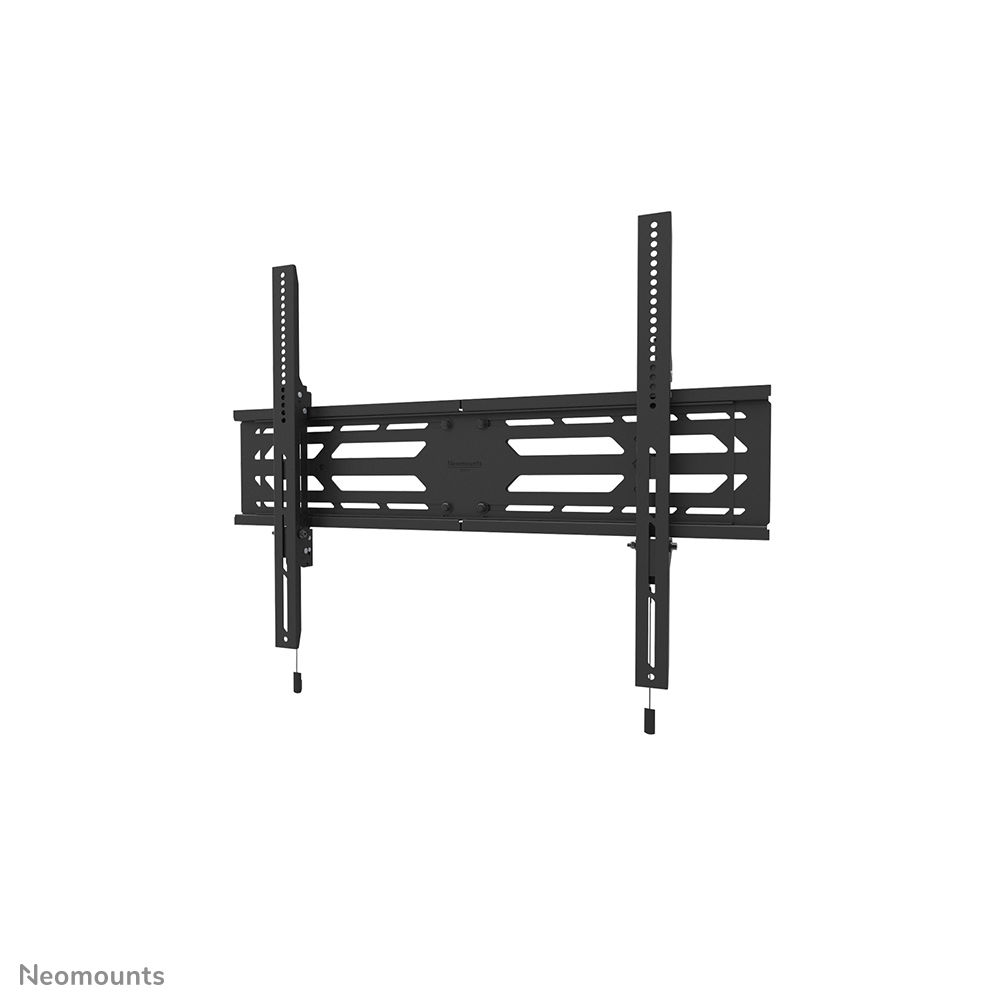

Neomounts WL30S-950BL19 feste Wandhalterung für 55-110" Bildschirme - Schwarz
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
Neomounts WL30S-950BL19 Heavy duty wall mount 55-115" - fixed - lockable - landscape and portrait, 2.92 m (115"), 100 x 100 mm, 1500 x 900 mm, 6°, Steel, Black
Specifikationer
| Maximum weight capacity | 160 kg |
| Minimum screen size | 139.7 cm (55") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 160 kg |
| Maximum screen size | 2.92 m (115") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 1500 x 900 mm |
| Panel mounting interface | 1000 x 400,1000 x 600,1000 x 800,1000 x 700,100 x 200,100 x 100,100 x 150,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 800,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600 |
| Mounting type | Wall |
| Height adjustment | Yes |
| Height adjustment range | 0 - 20 mm |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Distance to the wall (max) | 6.7 cm |
| Product colour | Black |
| Housing material | Steel |
| Accepts padlock | Yes |
| Country of origin | China |
| Package net weight | 11.7 kg |

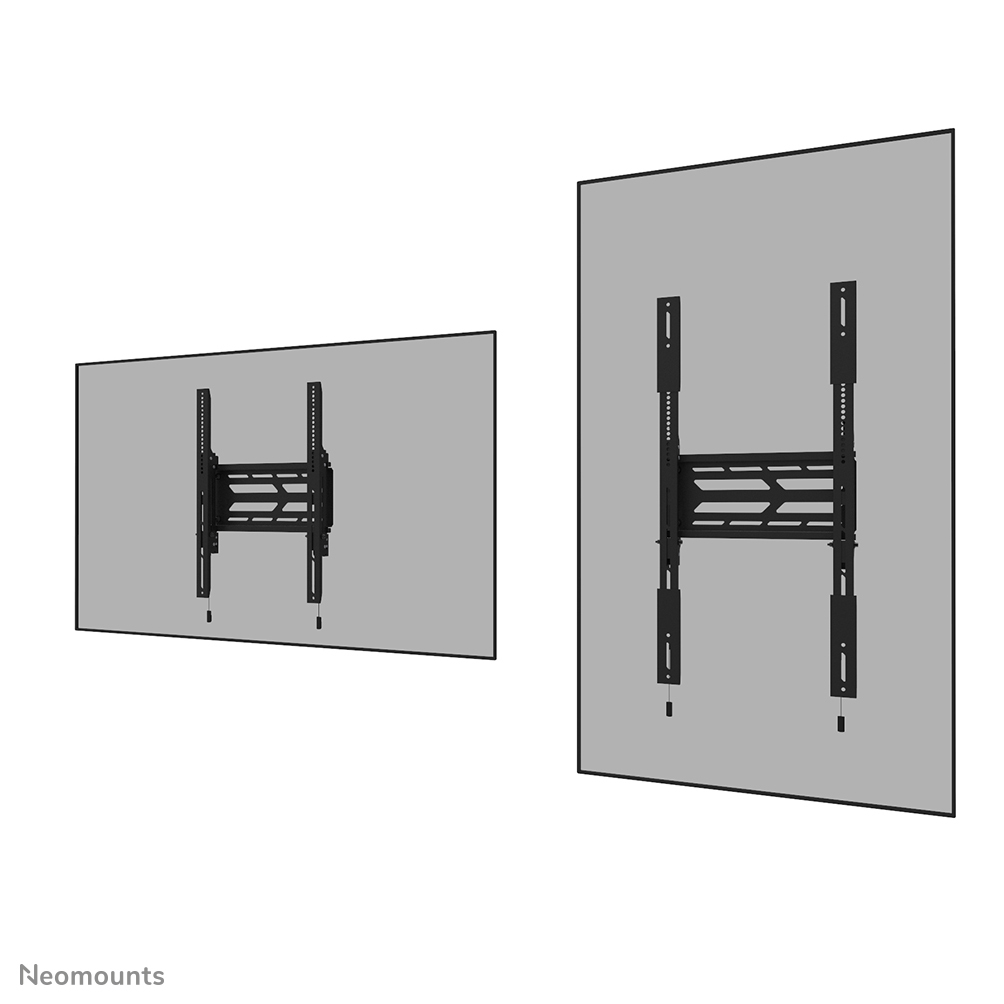

| Orientation | Landscape/Portrait |
| Warranty period | 5 year(s) |
| Lockable | Security screw included |
| Width | 1600 mm |
| Depth | 67 mm |
| Depth (max) | 6.7 cm |
| Height | 936 mm |
| Weight | 10.2 kg |
| Package width | 222 mm |
| Package depth | 98 mm |
| Package height | 918 mm |
| Package weight | 11.7 kg |
| Master (outer) case width | 211 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case height | 938 mm |
| Master (outer) case gross weight | 23.9 kg |
| Master (outer) case net weight | 20.3 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 30 pc(s) |

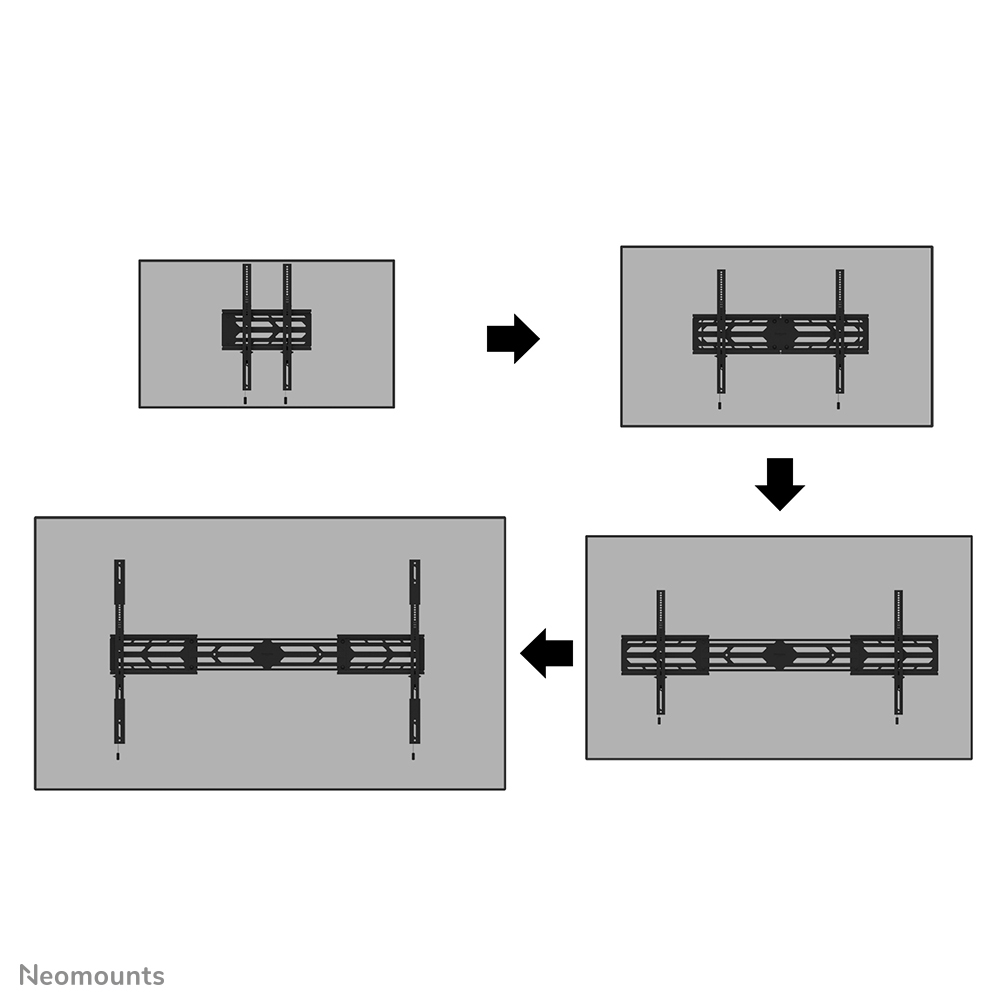

| Width adjustment range | 893 - 1600 mm |
