Neomounts FPMA-C340
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung

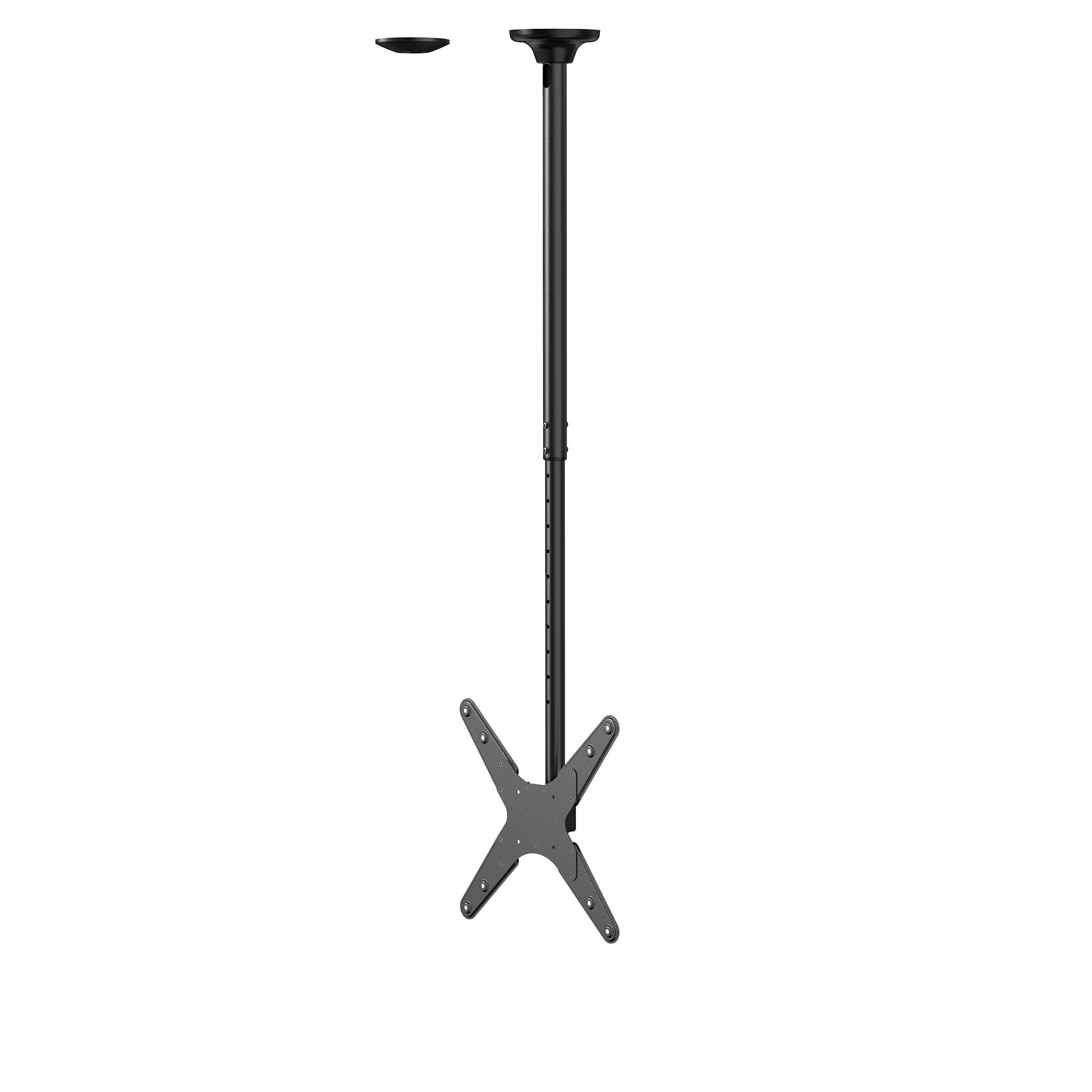

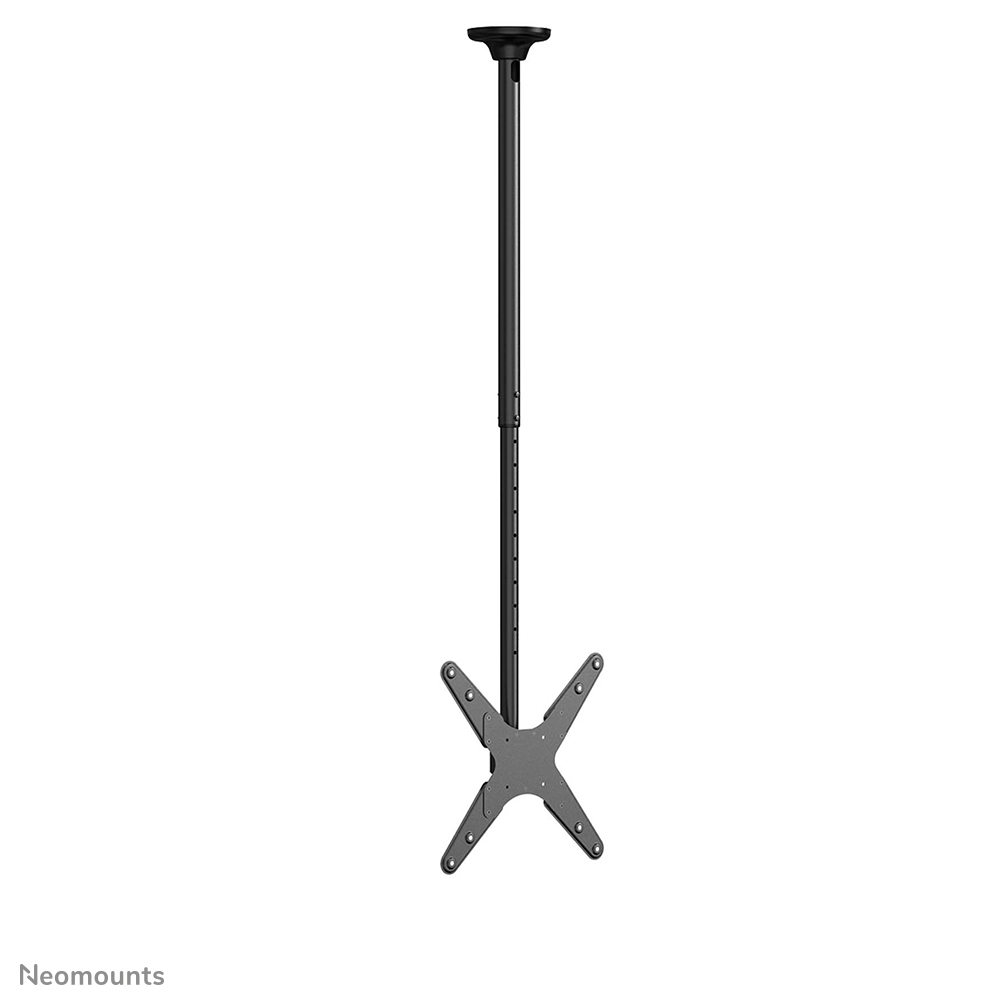

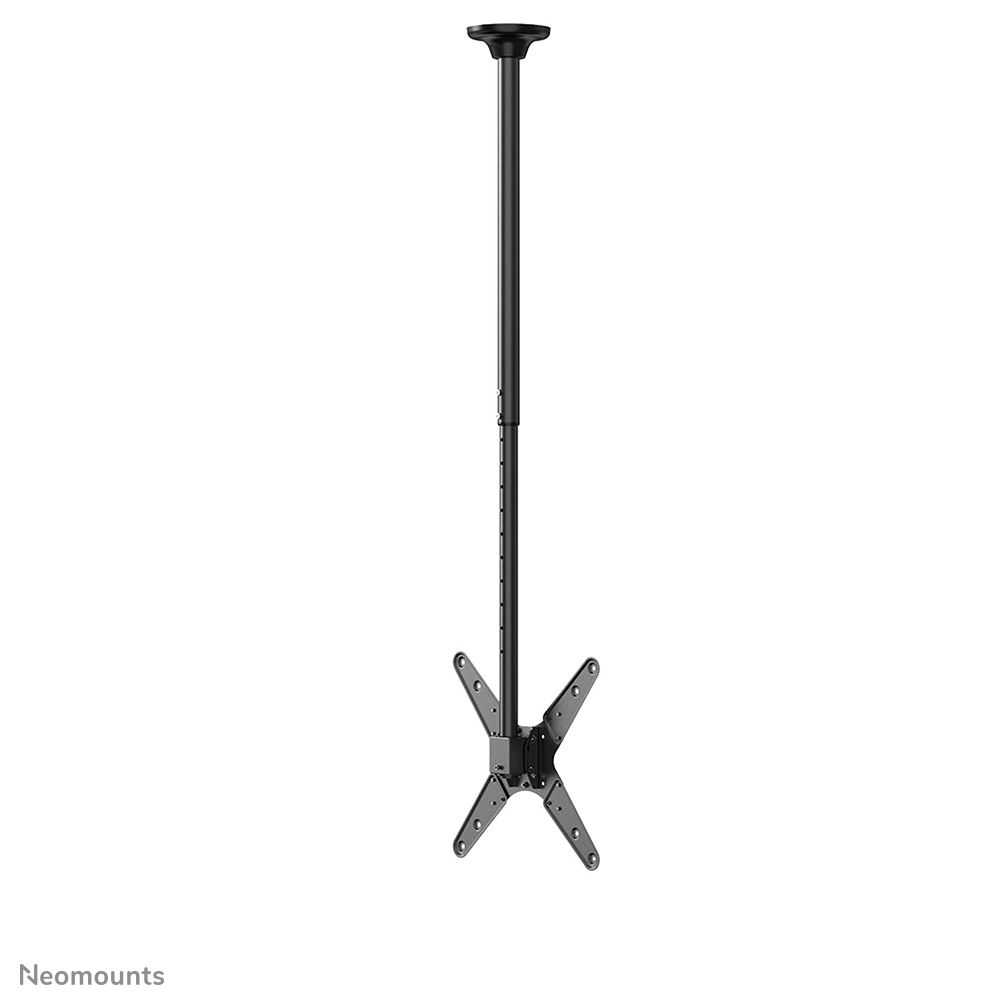

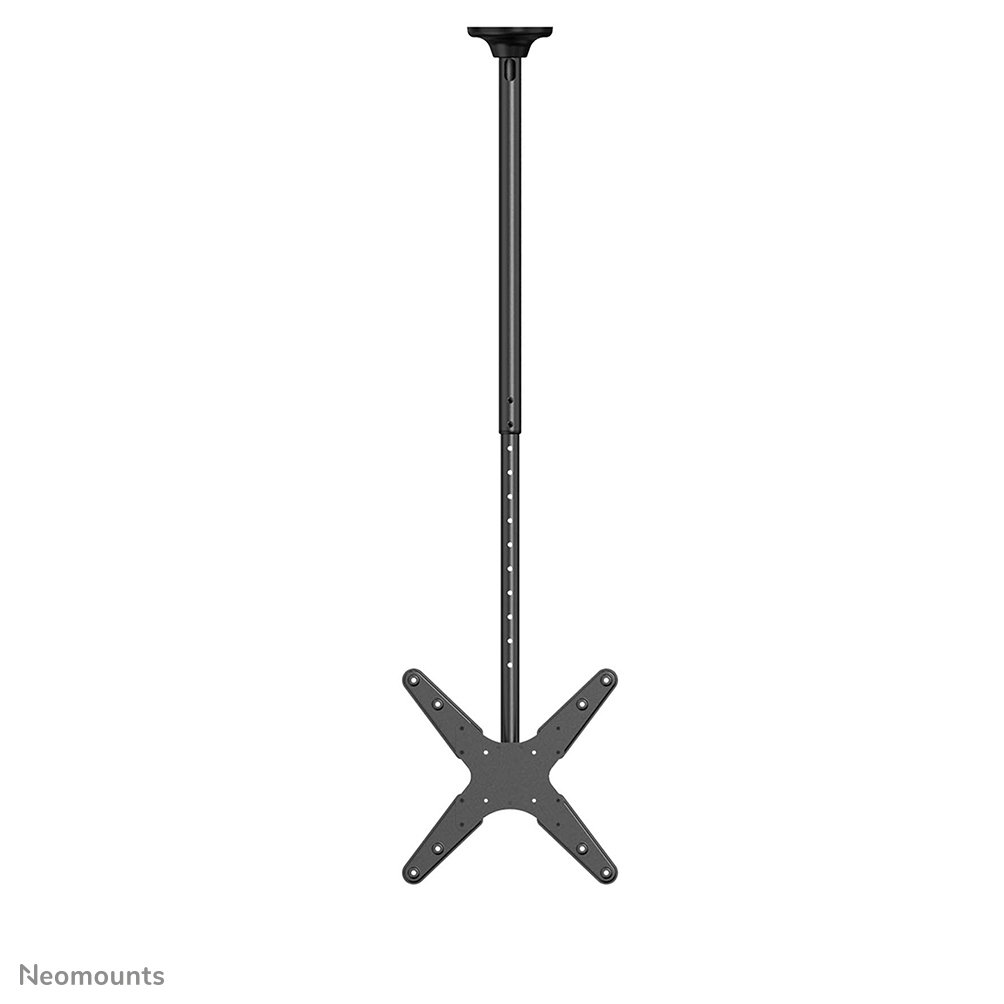

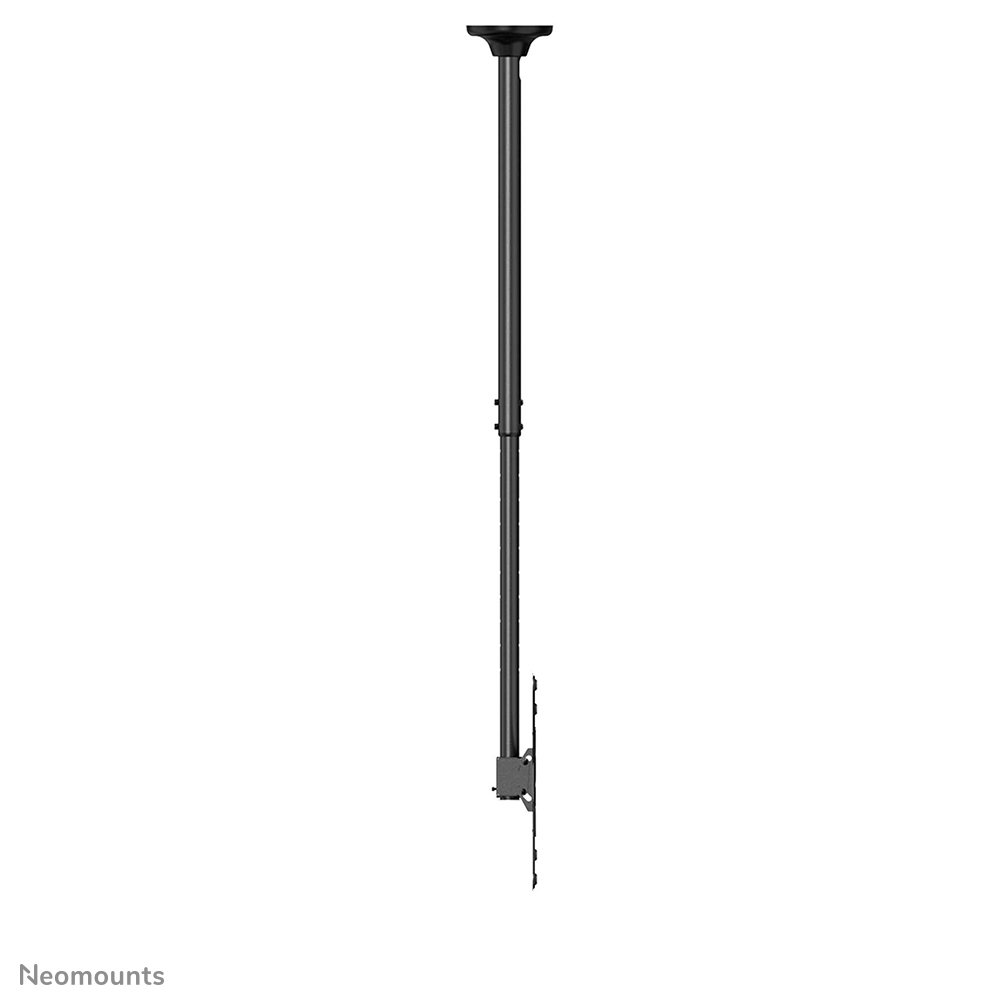

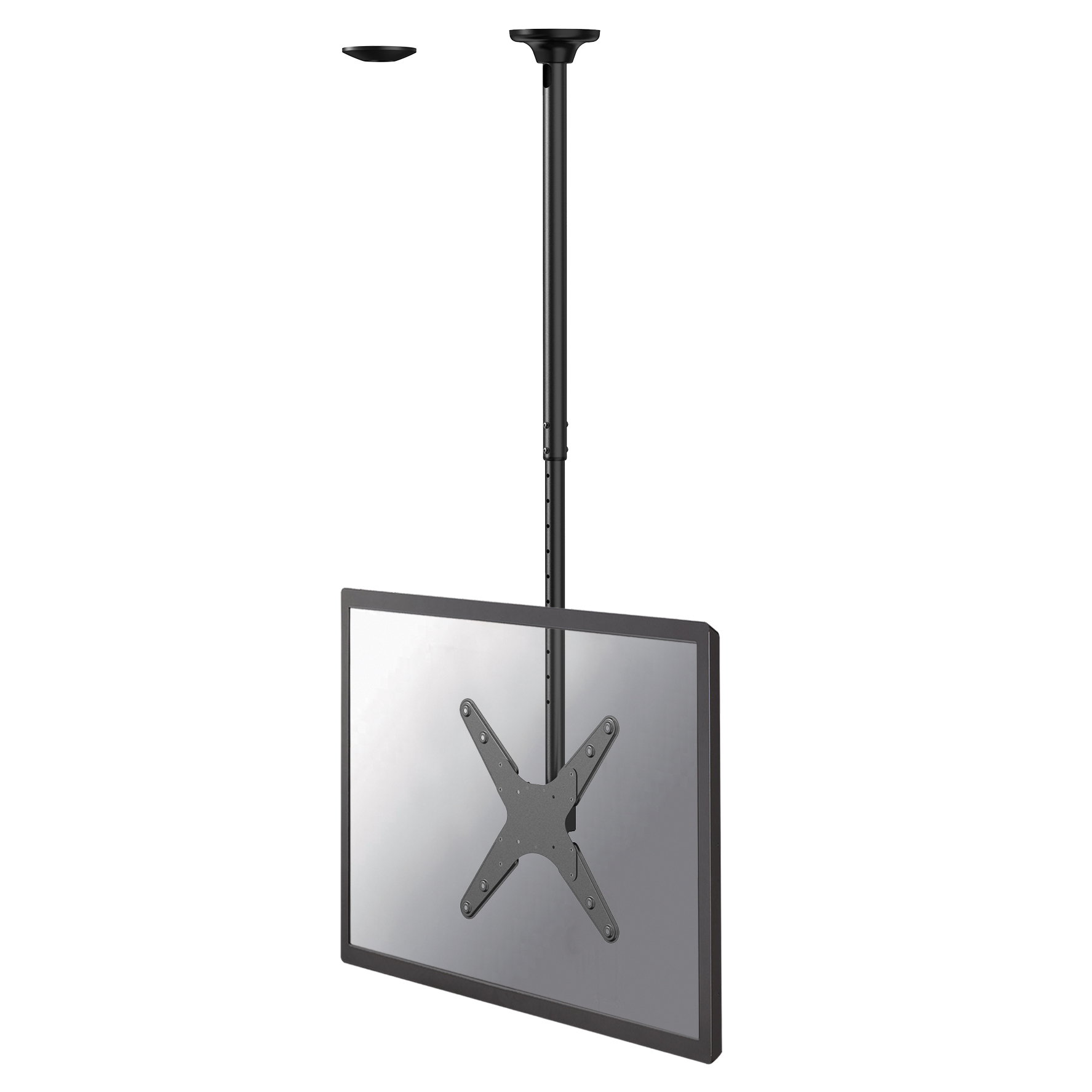

Neomounts FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm, 100 x 100 mm, 400 x 400 mm, -25 - 0°, -180 - 180°, 6°, Black
Spezifikationen
| Maximum weight capacity | 50 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum screen size | 190.5 cm (75") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,150 x 200,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Mounting type | Ceiling |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 1060 - 1560 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -25 - 0° |
| Swivelling | Yes |
| Swivel angle | 360° |
| Swivel angle range | -180 - 180° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Number of pivot points | 1 |
| Tilt angle | 25° |
| Product colour | Black |
| Housing material | Steel |
| Country of origin | China |
| Package net weight | 12.8 kg |
| Height | 1785 mm |
| Weight | 5.54 kg |
| Package width | 250 mm |
| Package depth | 145 mm |
| Package height | 930 mm |
| Package weight | 8.8 kg |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 950 mm |
| Master (outer) case gross weight | 17.6 kg |
| Master (outer) case net weight | 17.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 30 pc(s) |
