Startseite · Zubehör · Neomounts DS70-250SL1 Tischhalterung für Monitore bis 89cm 35" 9KG Silber
Newstar

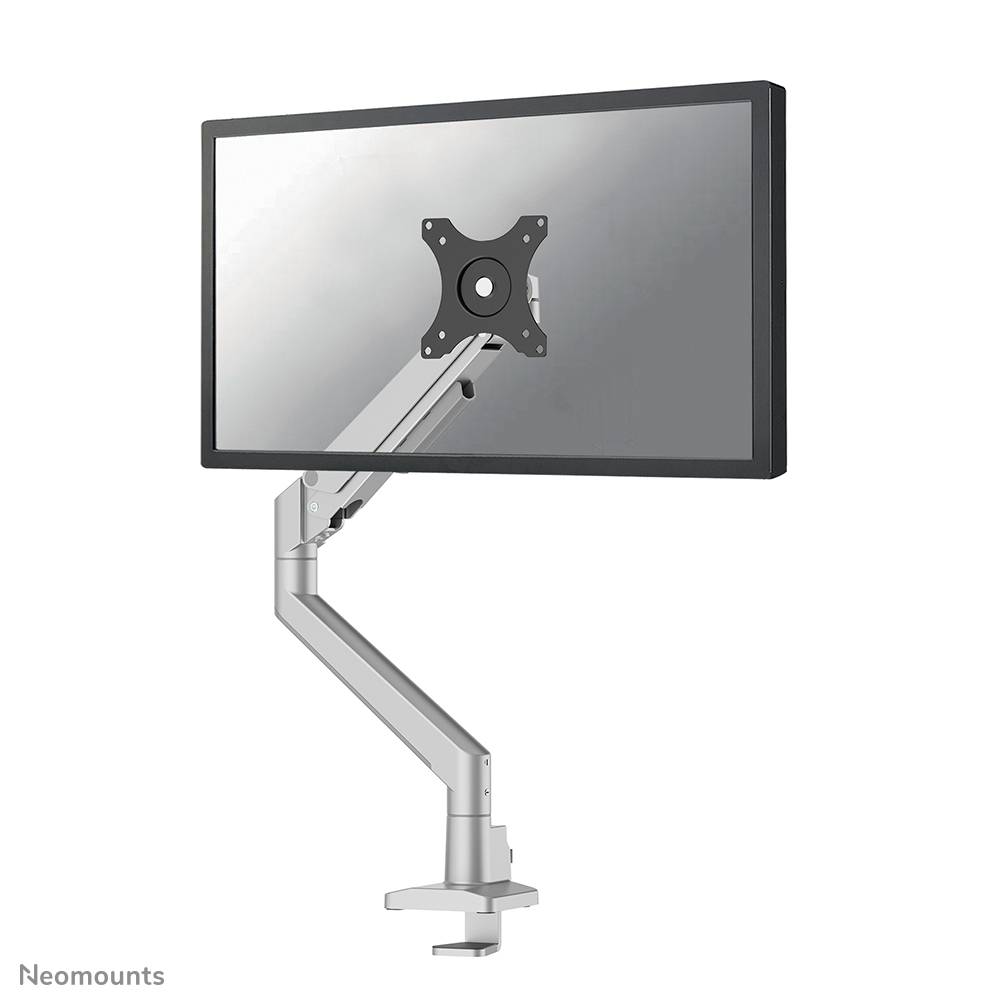

Neomounts DS70-250SL1 Tischhalterung für Monitore bis 89cm 35" 9KG Silber
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung

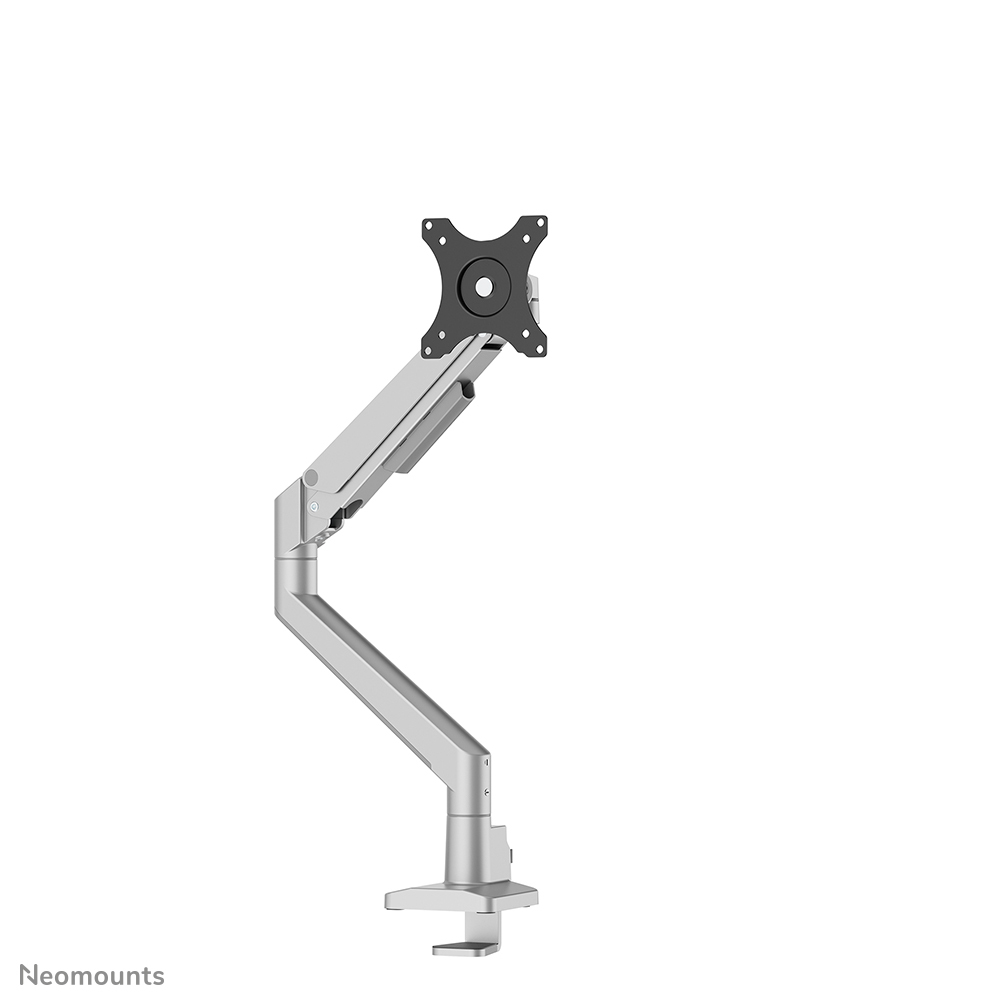

Neomounts DS70-250SL1 Monitor arm 17-35" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 9 kg, 43.2 cm (17"), 88.9 cm (35"), 100 x 100 mm, Silver
Spezifikationen
| Maximum weight capacity | 9 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 9 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 8 kg |
| Maximum screen size | 88.9 cm (35") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Distance to the wall (min) | 12.5 cm |
| Distance to the wall (max) | 58 cm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 215 - 495 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 70 - 525 mm |
| Width adjustment | 91 cm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Pivot angle | -180 - 180° |
| Cable management | Yes |
| Housing material | Aluminium |
| Product colour | Silver |
| Accepts padlock | No |
| Width | 114 mm |
| Depth | 580 mm |
| Height | 552 mm |
| Weight | 2.3 kg |
| Package width | 198 mm |
| Package depth | 108 mm |
| Package height | 428 mm |
| Package weight | 2.9 kg |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 910 mm |
| Warranty period | 5 year(s) |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 18.3 kg |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 13.8 kg |
| Harmonized System (HS) code | 7616991099 |
| Products per pallet (EU) | 84 pc(s) |
