Purple 80 meters S/FTP CAT6A B2ca PoE++ 100W solid prefab installation cable, RJ45 male – female
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
ACT Blue 80 meters S/FTP CAT6A B2ca PoE++ 100W solid prefab installation cable, RJ45 male – female, 80 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Blue
Specifikationer
| Product colour | Blue |
| Cable length | 80 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Cable class | Ea |

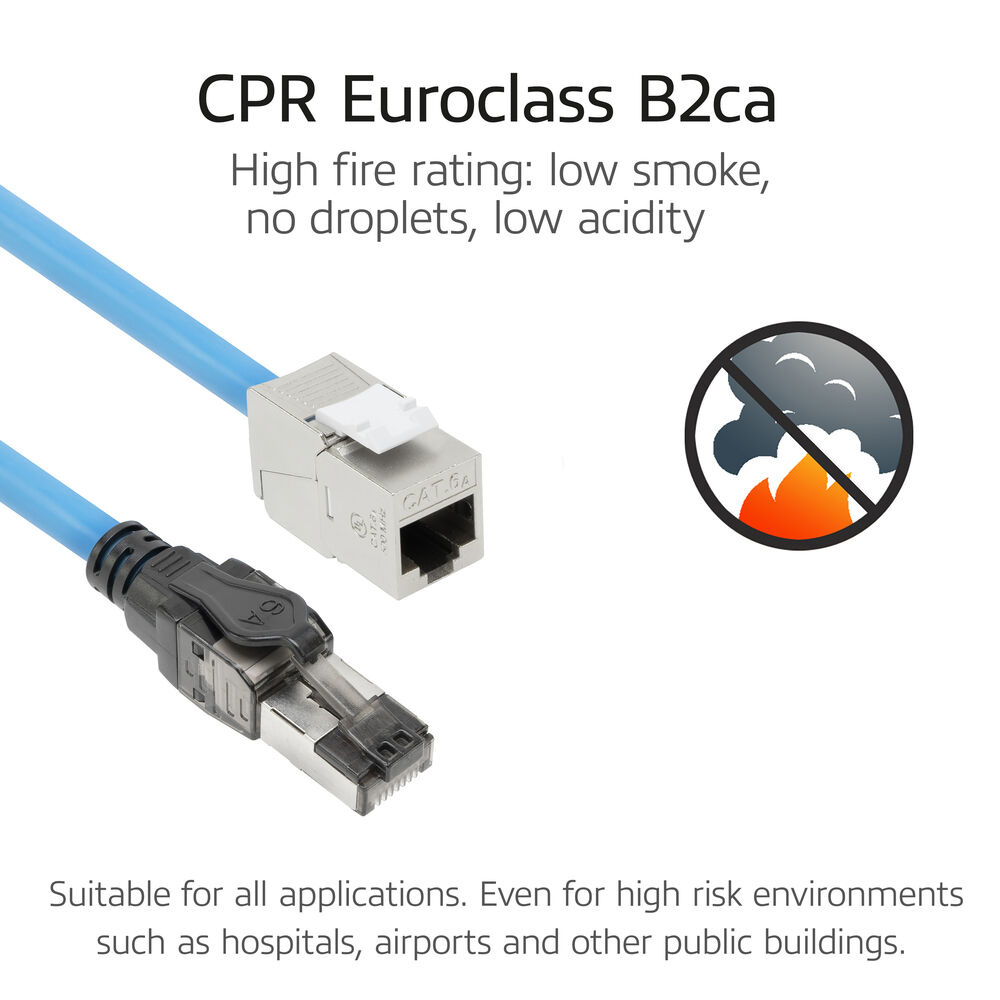

| Cable fire class | B2ca |
| Networking standards | IEEE 802.3bt |
| AWG wire size | 23 |
| Frequency | 500 MHz |
| Bend radius (min) | 3 cm |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget | 100 W |
| Plug and Play | Yes |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Compliance certificates | ANSI, CE, Telecommunicatios Industry Association (TIA), UKCA |
| Outer diameter | 7.4 mm |
| Quantity per pack | 1 pc(s) |
