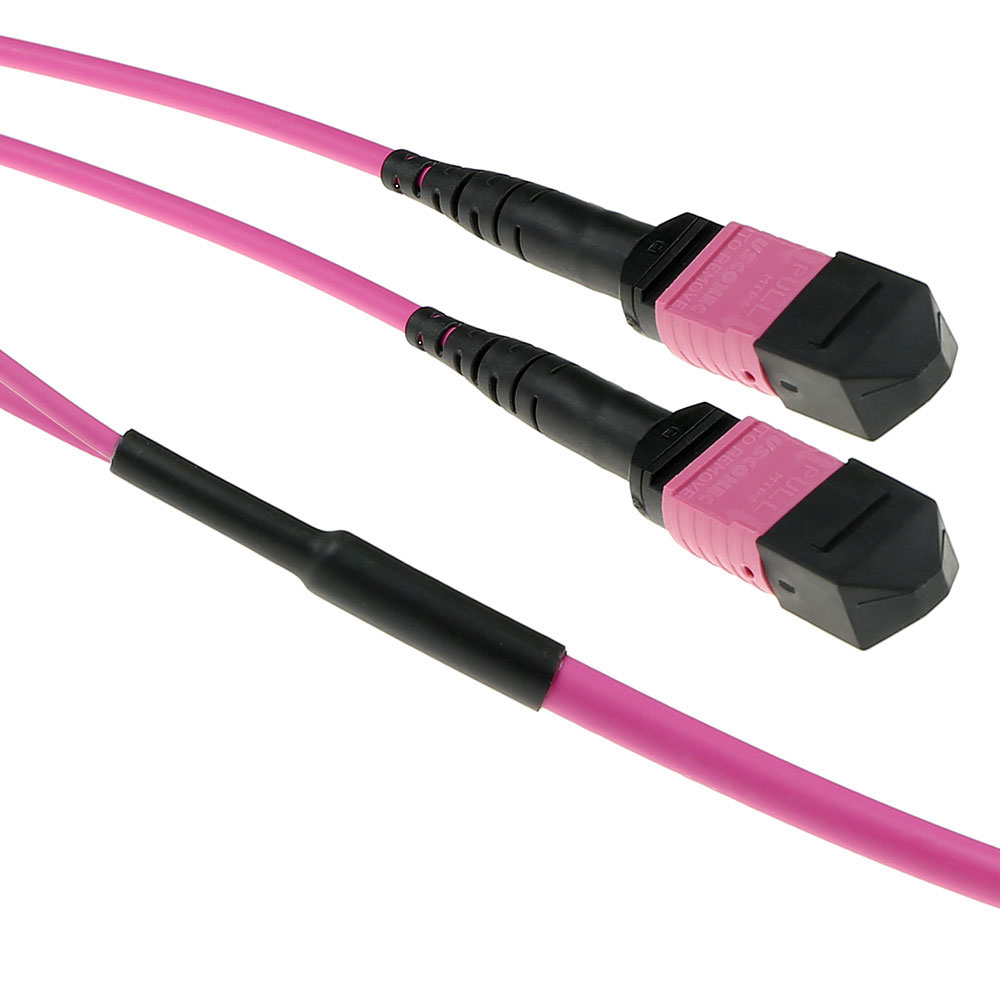

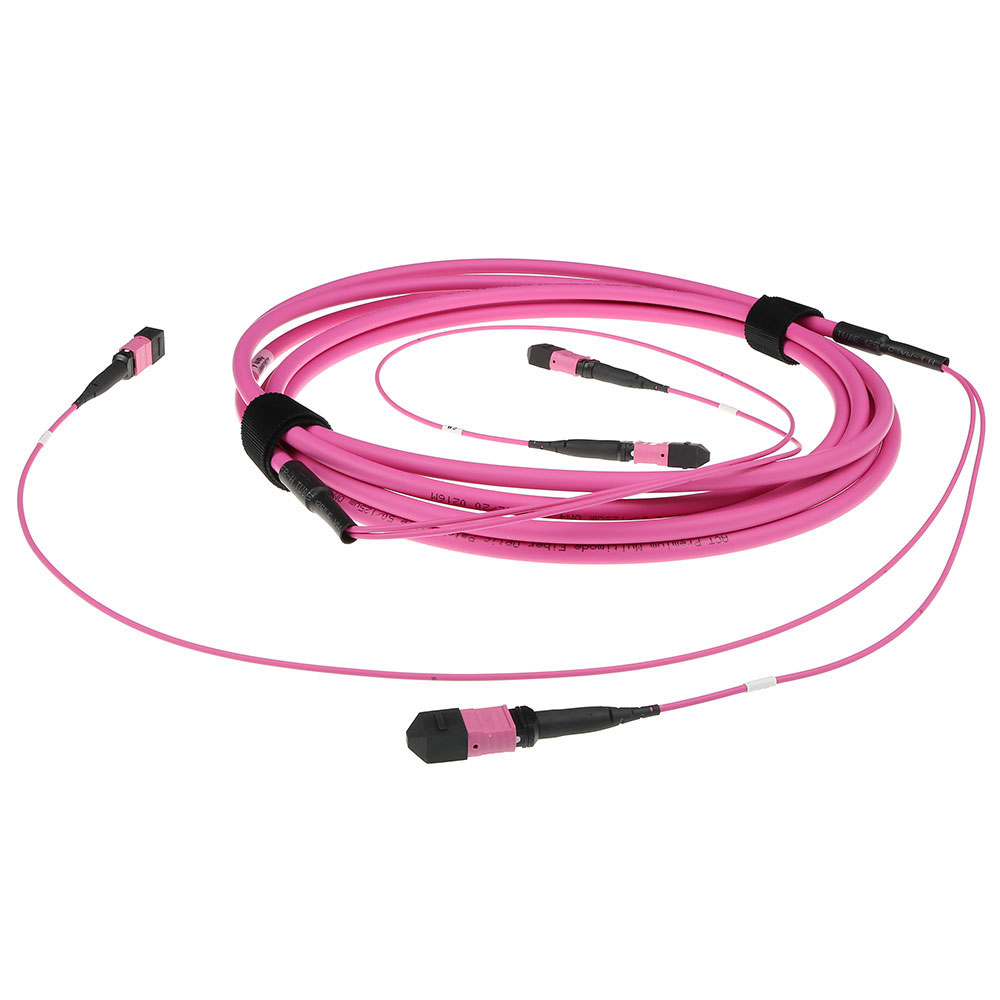

100 meter Multimode 50/125 OM4(OM3) polarity A fiber trunk cable with 2 MTP/MPO female connectors each side
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
ACT DC5216, 100 m, OM4, 2x MPO, 2x MPO
Specifikationer
| Cable length | 100 m |
| Fibre optic type | OM4 |
| Connector 1 | 2x MPO |
| Connector 2 | 2x MPO |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Product colour | Violet |
| Full duplex | No |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Insertion loss | 0.2 dB |
| Return loss | 20 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Polarity | A |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |

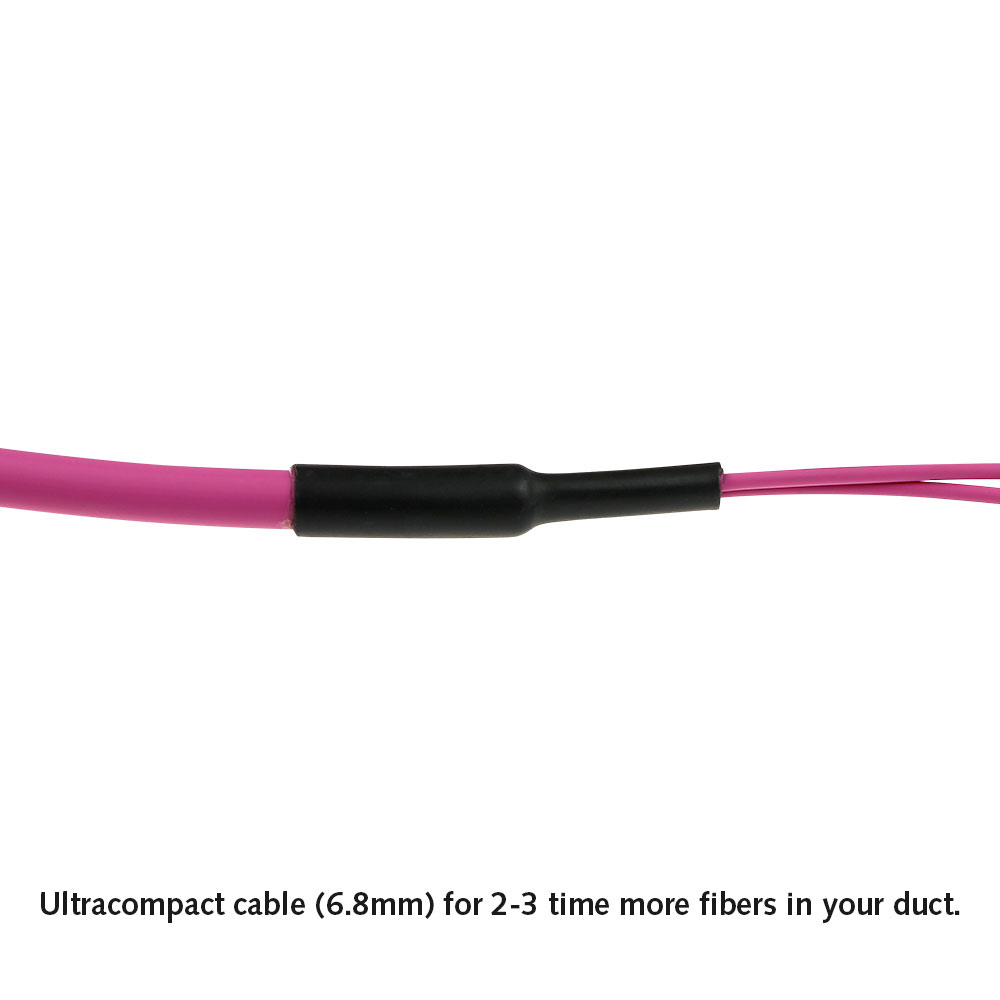

| Cable diameter | 6.8 mm |
| Weight | 3.54 kg |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85447000 |
