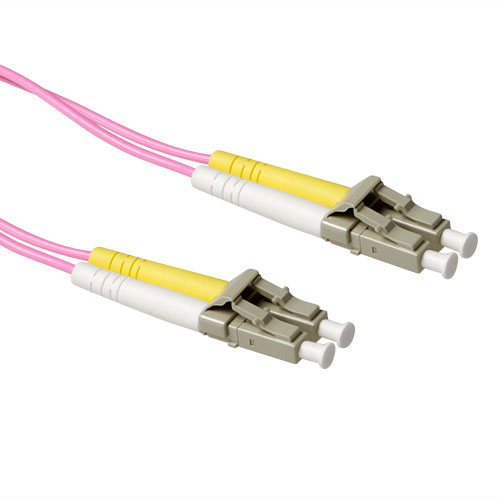

0.25 meter LSZH Multimode 50/125 OM4 fiber patch cable duplex with LC connectors
Varenr. · EAN
Pris ved login
priser efter jeres aftale
På lager
Levering 1–2 hverdage · bestil inden 15:00
Beskrivelse
ACT 0.25 meter LSZH Multimode 50/125 OM4 fiber patch cable duplex with LC connectors, 0.25 m, OM4, LC, LC
Specifikationer
| Cable length | 0.25 m |
| Fibre optic type | OM4 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Violet |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Insertion loss | 0.2 dB |
| Return loss | 45 dB |
| Compressive strength | 90 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector material | Ceramic |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | -25 - 80 °C |
| Cable diameter | 2 mm |
| Harmonized System (HS) code | 85447000 |
