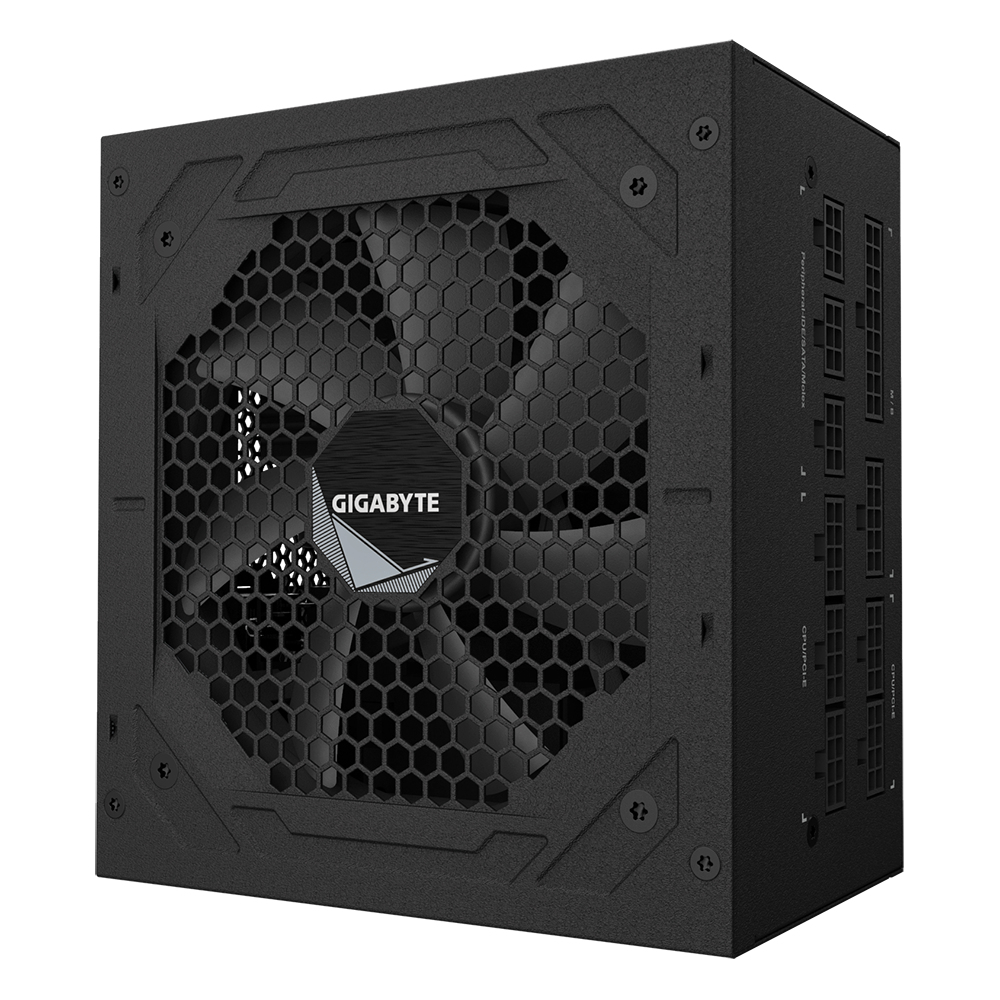

Gigabyte UD750GM - strømforsyning - 75
GIGABYTE

Gigabyte UD750GM - strømforsyning - 75

Varenr. · EAN
På lager Levering 1–2 hverdage · bestil inden 15:00
Log ind for at købe

Beskrivelse

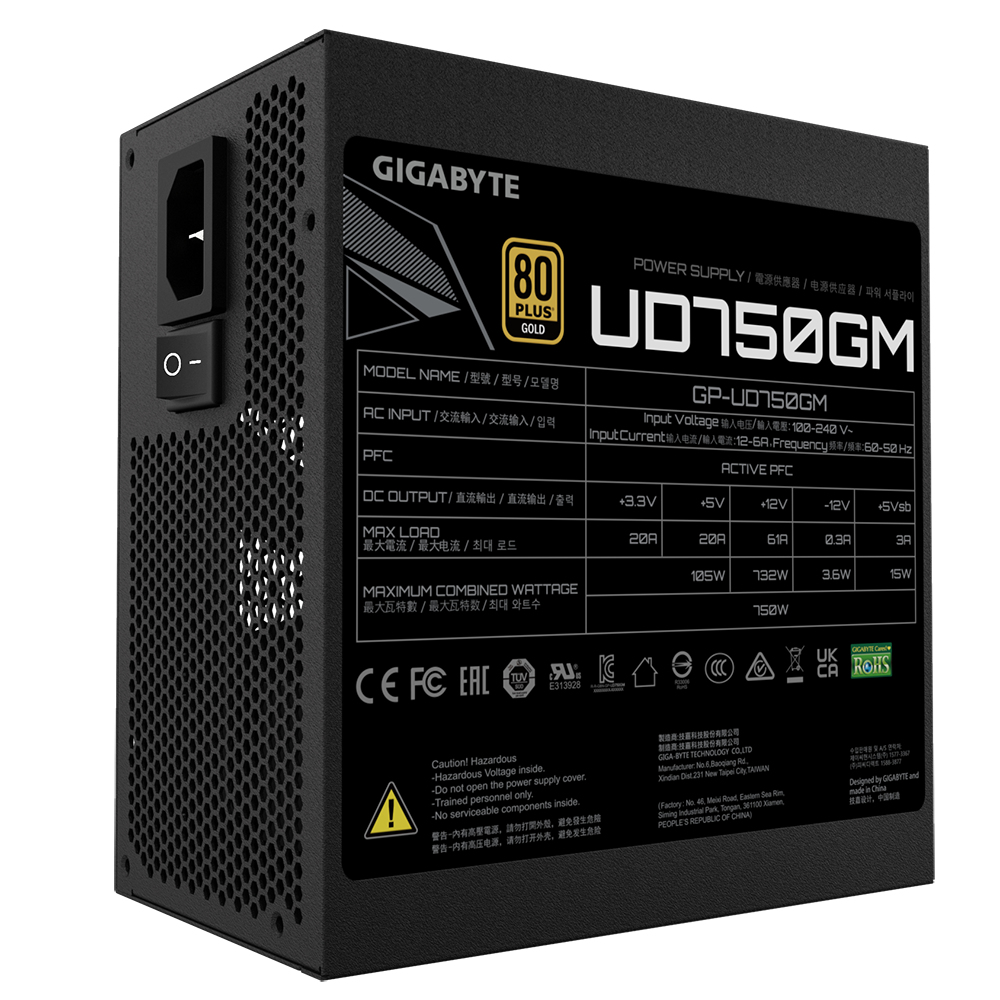

GIGABYTE GP-UD750GM, 750 W, 100 - 240 V, 50 - 60 Hz, 12 A, Active, 105 W

Datablad (PDF)

Specifikationer

Total power750 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current12 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)105 W
Combined power (+12V)732 W
Combined power (+5V)105 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)61 A
Max output current (+5V)20 A
Max output current (-12V)2.3 A
Max output current (+5Vsb)3 A
Hold time16 ms
Efficiency90%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

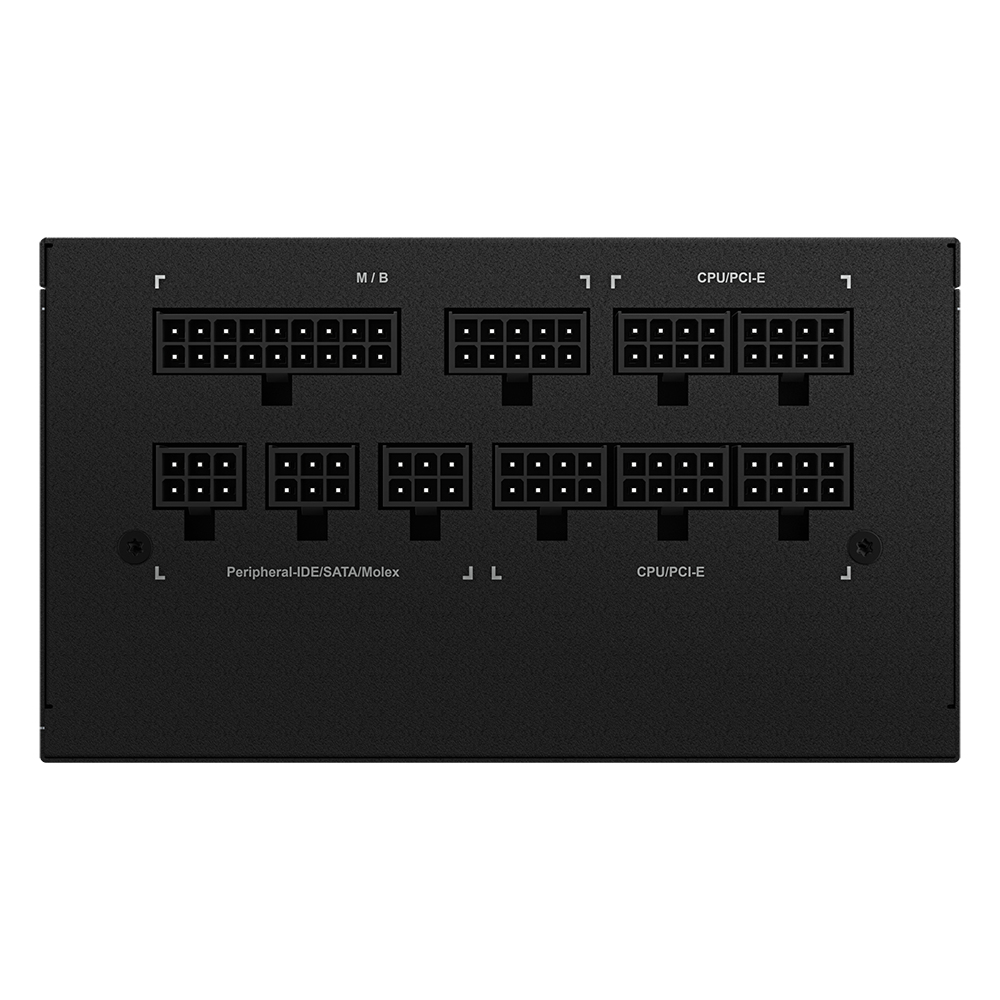

Motherboard power connector20+4 pin ATX
Motherboard power cable length61 cm
Number of SATA power connectors8
SATA power cable length150,300,450,600 mm
Peripheral (Molex) power connectors (4-pin)3
Peripheral (Molex) power cable length120,500 mm
EPS power connector (4+4 pin)Yes
PCI Express power connectors (6+2 pin)4
PCI Express power cable length60 cm
CPU power connector (4+4 pin)Yes
CPU power cable length60 cm
ATX power connector (20+4 pin)Yes
Floppy drive power connector1
Floppy disk drive connectorYes
Floppy disk drive cable length15 cm
Cabling typeFully-Modular
80 PLUS certification80 PLUS Gold
PurposePC
Power supply unit (PSU) form factorATX
ATX version2.31
Bearing technologyHYB
Mean time between failures (MTBF)100000 h
Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Fan locationTop
On/off switchYes
Cables includedCPU, PCIe, Peripheral (Molex), SATA
Width150 mm
Depth140 mm
Height86 mm
Harmonized System (HS) code84733020
