Startseite · Zubehör · APC Easy UPS On-Line UPS Rack AC 220/230/240V 1800Watt 2000VA 1-phase lead acid USB serial oc 4 PFC 2U Europe BK RAL 7010
APC
APC Easy UPS On-Line UPS Rack AC 220/230/240V 1800Watt 2000VA 1-phase lead acid USB serial oc 4 PFC 2U Europe BK RAL 7010
Art.-Nr. · EAN
Preis nach Anmeldung
Preise gemäß Ihrer Vereinbarung
Auf Lager
Lieferung 1–2 Werktage · Bestellung bis 15:00
Beschreibung

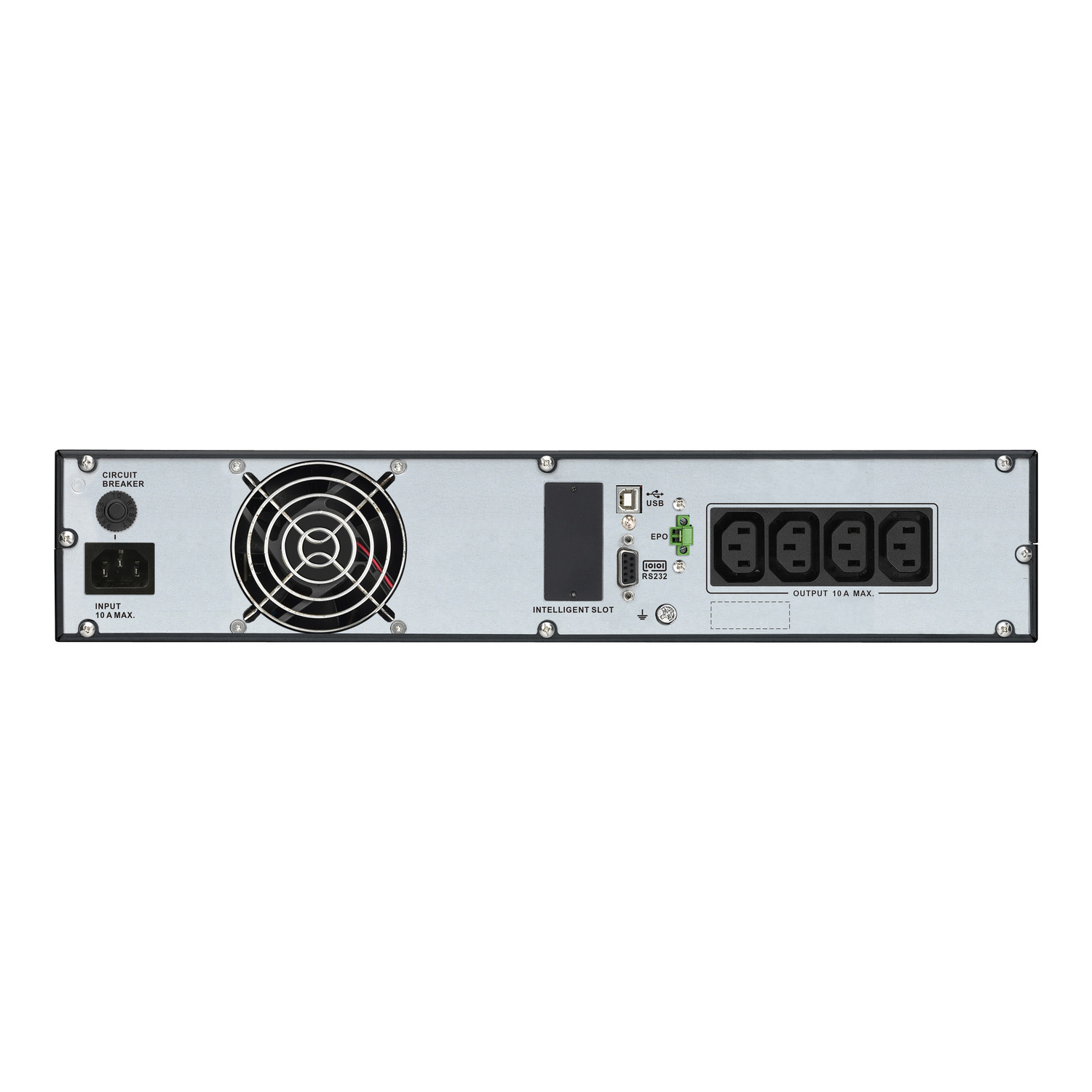

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit, Double-conversion (Online), 2 kVA, 1800 W, Sine, 110 V, 285 V
Spezifikationen
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2 kVA |
| Output power | 1800 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 285 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Surge energy rating | 945 J |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 230 V |
| Efficiency | 88% |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 50 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Power source type | AC |
| Detachable power cord | Yes |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| RS-232 ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 48 V |
| Battery recharge time | 4 h |
| Replacement battery cartridge | APCRBCV201 |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 1.5 m |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CE; UKCA; TISI |
| Rack mount kit | Yes |
| Cables included | Output power cable, RS-232, USB cable, Input power cable |
| Manual | Yes |
