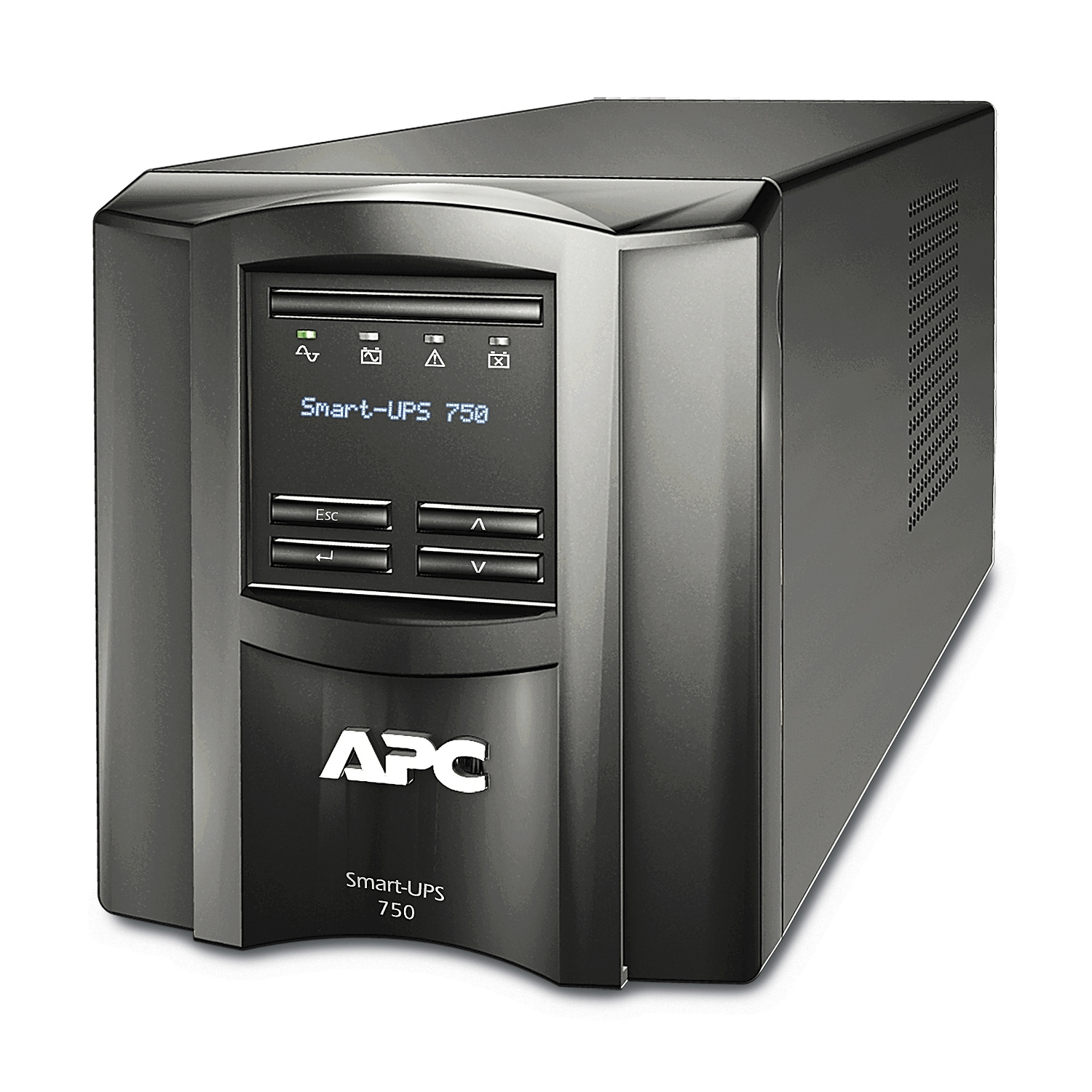

APC Smart-UPS 750VA LCD UPS AC 120V 500Watt 750VA 1-phase Ethernet RS-232 USB output connectors 6 Black with APC SmartConnect
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description
APC SMT750C, Line-Interactive, 0.75 kVA, 500 W, Sine, 82 V, 144 V
Specifications
| UPS topology | Line-Interactive |
| Output power capacity | 0.75 kVA |
| Output power | 500 W |
| Waveform | Sine |
| Input operation voltage (min) | 82 V |
| Input operation voltage (max) | 144 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 127 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 540 J |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Noise level | 41 dB |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |

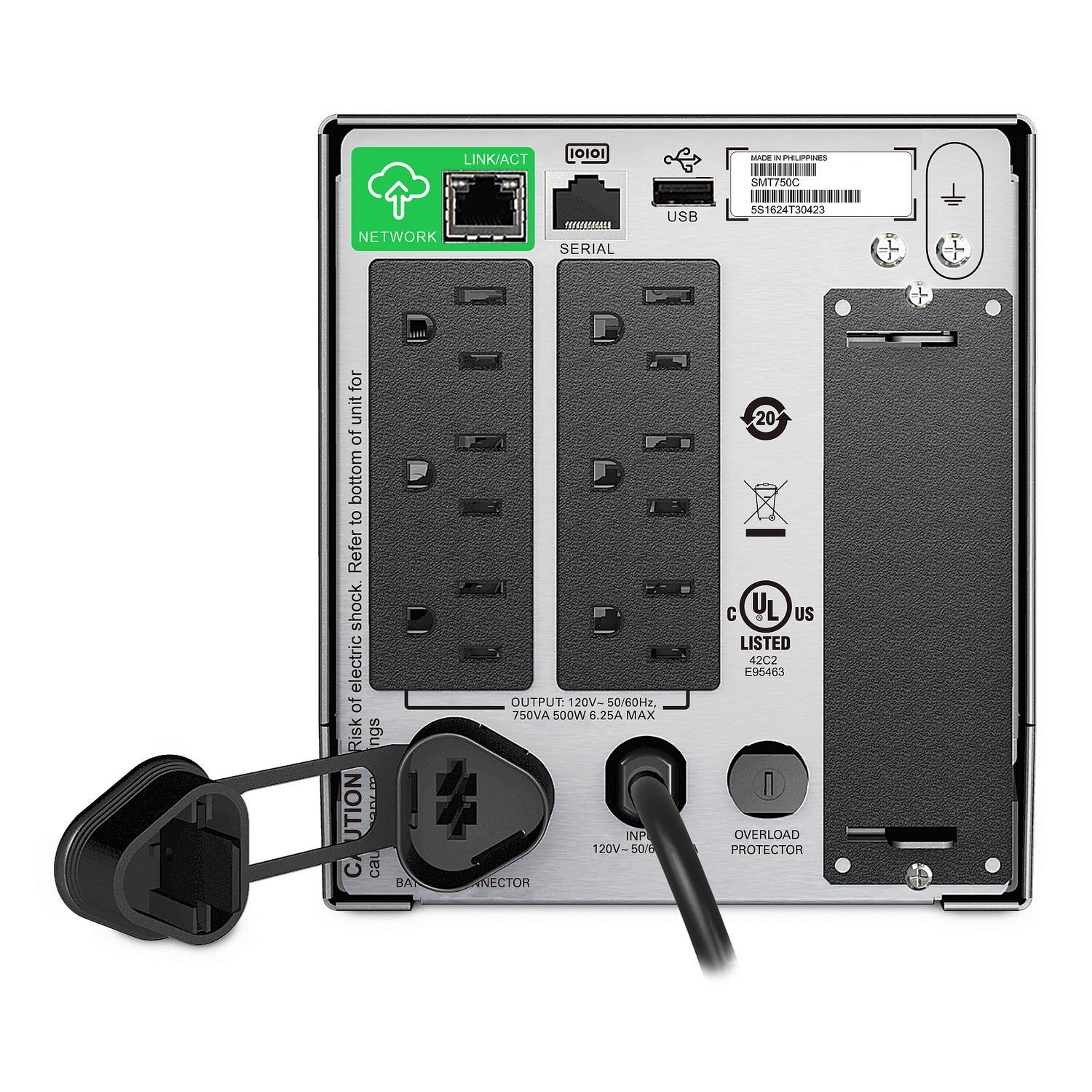

| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | RBC48 |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH |
| Cables included | USB cable |
| Sustainability certificates | ENERGY STAR |
| Width | 138 mm |
| Depth | 369 mm |
| Height | 161 mm |
| Weight | 12.5 kg |
| Resource CD | Yes |
| Software CD | Yes |
| Package width | 278 mm |
| Package depth | 499 mm |
| Package height | 301 mm |
| Package weight | 14 kg |
| Products per pallet | 24 pc(s) |
| Output voltage | 120 V |
