Neomounts WL95-800BL1 Push-to-Pop-Out Videowall-Wandhalterung für 42-70" Bildschirme - Schwarz
Item no. · EAN
Price at sign-in
prices per your agreement
In stock
Delivery 1–2 business days · order before 15:00
Description

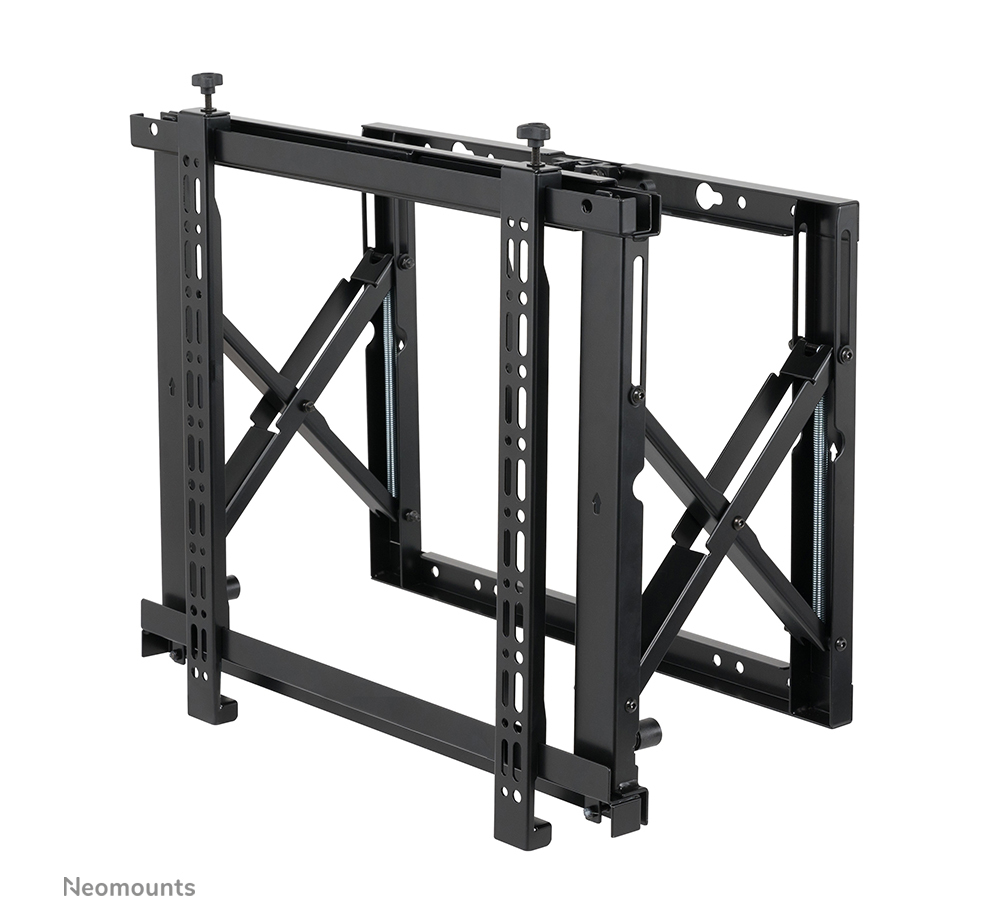

Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg, 35 kg, 106.7 cm (42"), 177.8 cm (70"), 200 x 200 mm, 600 x 400 mm, 0 - 13 mm
Specifications
| Maximum weight capacity | 35 kg |
| Minimum screen size | 106.7 cm (42") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 35 kg |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400 |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 13 mm |
| Swivelling | Yes |
| Cable management | No |
| Tilt adjustment | Yes |
| Height adjustment | 1.3 cm |
| Depth adjustment | 4 mm |
| Width adjustment | 4 cm |
| Distance to the wall (min) | 7.8 cm |
| Distance to the wall (max) | 26.6 cm |
| Product colour | Black |
| Housing material | Steel |
| Accepts padlock | No |
| Width | 620 mm |
| Depth | 84 mm |
| Height | 510 mm |
| Weight | 7.72 kg |
| Width adjustment range | 0 - 40 mm |
| Package width | 570 mm |
| Package depth | 110 mm |
| Package height | 620 mm |
| Package weight | 9.8 kg |
| Package type | Box |
| Package net weight | 9.8 kg |
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Warranty period | 5 year(s) |
| Country of origin | China |
| Depth adjustment range | 0 - 4 mm |
| Master (outer) case net weight | 8.5 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 24 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 110 mm |
| Master (outer) case height | 620 mm |
| Master (outer) case gross weight | 9.8 kg |
| Products per master (outer) case | 1 pc(s) |
